EASYSCAN DYNAMOMETER

FOR 2 OR 4 WHEEL DRIVE

EASYSCAN X2 and x4 dynos

Get yourself a Rotronics dyno at a competitive price!

Historically not widespread, the dynamometer has become more democratic in recent years. With our experience, we have designed a powerful tool, easy to use and above all affordable.

Pit-mounted or above the ground

In a pit for the cleanest possible integration into the room.

Above ground to not touch existing garage slab!

Note that any type of installation is reversible and the dyno can switch from one configuration to another.

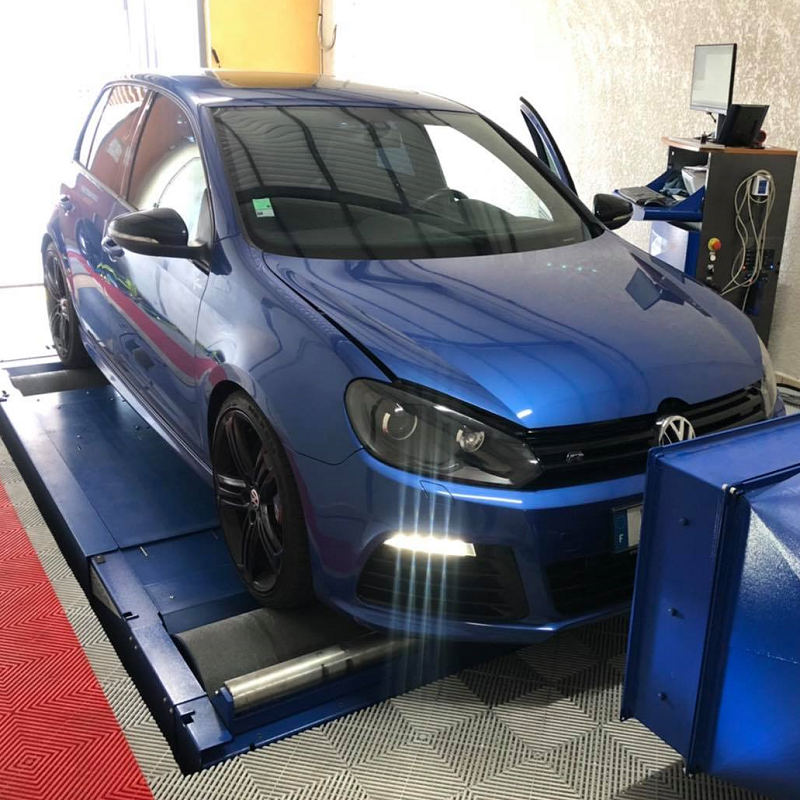

A single-roller chassis dyno :

To offer flawless adherence and the best repeatability, the dyno has 450 mm diameter resin-coated rollers.

A braked dyno:

The dynamometer has 2 high performance eddy current brakes on the front and rear axle of the dyno to test any vehicle you can ever imagine.

Power and torque measurement: for example, you can compare the vehicle’s performance before and after reprogramming.

Road load simulation: the vehicle operates under the same conditions on the test dyno as on the road.

High performance synchronisation:

The chassis dyno has a toothed belt between the front axle and the rear axle on the dyno, making it possible to pass both 2WD and 4WD vehicles. Likewise, no difficulty in switching from quattro, Xdrive or permanent 4-wheel drive: mechanical synchronisation is the best to be able to test cars quickly and efficiently!

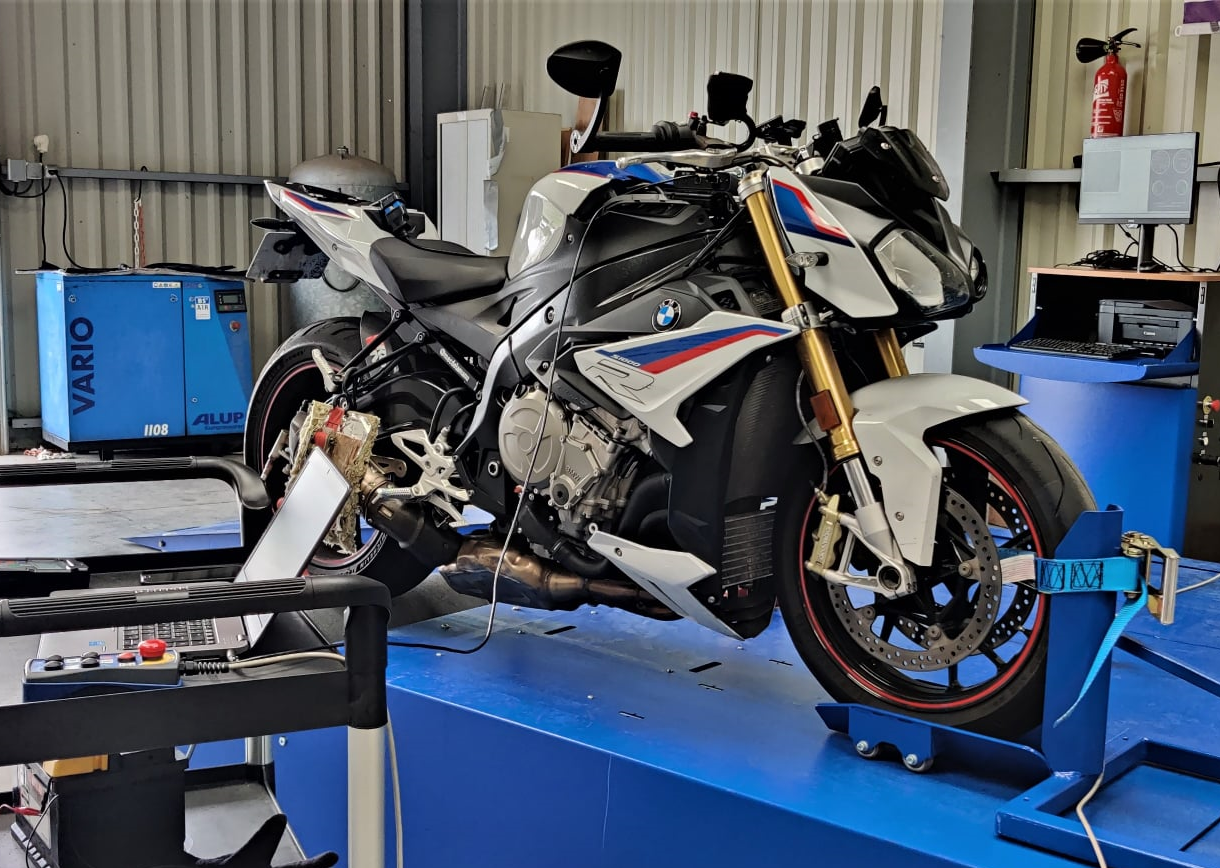

A motorcycle compatible dyno

Easyscan can accommodate motorcycles (optional). A clutch system isolates a roller + brake to reduce the inertias caused by the vehicle and not to put too much resistance against it.

The kit comes with the front support and straps to offer a turn key solution.

BRAKED DYNO

Eddy current brake for vehicle resistance

SINGLE ROLLERS

A single point of contact between wheel and roller

SYNCHRONISED 300KM / H

Free of charge and without obligation

Characteristics Easyscan X2 Easyscan X4
Maximum admissible instantaneous power. 500 hp 1000 HP
Min / Max wheelbase N / A 2335/3335 mm
Maximum admissible speed 300 km / h
Roller diameter 450 mm
Lane width (min / max) 920/2100 mm
Weather Station Option
OBD acquisition Option
Lambda measurement Option
ENgine RPM measurement kit Option
Wireless remote control Option
Above-ground option No Yes
Motorcycle compatibility Option

Complete technical documentation on how the solution works

Because the support of the dyno is just as important as the dyno itself, the customer service is the cornerstone of Rotronics.

This is made up of 4 engineers and technicians. Their role is to commission the dynos, calibrate them and also to ensure customer support.

A hotline is provided by our services to meet your expectations.

Thus, once the dyno has been delivered, Rotronics can be reached and supports you in the use of your equipment.
